15ft * 6.5ft Filming Pro 1200w Film Lighting Balloon Supply Cable Dimmable Double Color Temperature Helium Cube
Lighting balloons, with their high power, high output and unparalleled performance, are widely used as a high-quality softening light source in scenery lighting (fill or main lighting). Lighting balloons are capable of creating amazing lighting that conventional lighting cannot satisfactorily provide.
Data sheets
Regulation type constant current
Diffusion angle 120° (chart 1.)
CRI - colour rendering index > 95 (chart 2.)
Flicker free 31 kHz
Potentiometer - colour temperature – intensity
Set up time 15 min
Inflation type external pump *
power supply Max. entry power 1000 W
Balloon to power supply cable length 10 m I 30 ft
Connector to power supply cable length 2 m I 6 ft
Noise level (remote power supply) 23 dB
Input voltage 90-260 V AC
Input frequency 50-60 Hz
Output voltage 48 V DC
Temperature range for optimal use -5°C / +40°C
dimensions and packaging
Balloon shape sphere
Balloon dimensions 160 cm I 5 ft in diameter
Weight of the balloon 12 kg I 27 lbs
| Sphere - Ellipse: HMI | | | | | | | | |
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks |
| (291 cft) |
| 1,150 W HMI | Sphere | Ellipse | 2x 575 W / G22 | 6.5’ | 6.5’x8’ | 35’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 8’ | 8’x10’ | 35’ | 2 | 1 | 35 min | 55’ | 15 mph |
| 2.4 KW HMI | Sphere | Ellipse | 2x 1.2 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 35 min | 55’ | 15 mph |
| 4.8 KW HMI | Sphere | Ellipse | 4x 1.2 KW / G38 | 12’ | 12’x14’ | 65’ | 5 | 1 | 45 min | 100’ | 20 mph |
| 5 KW HMI | Ellipse | 2x 2.5 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 8 KW HMI | Ellipse | 2x 4 KW / G38 | 14’x16’ | 75’ | 8 | 2 | 60 min | 100’ | 25 mph |
| 10 KW HMI | Sphere | 4x 2.5 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| 16 KW HMI | Sphere | 4x 4 KW / G38 | 16’5 | 80’ | 10 | 2 | 75 min | 100’ | 25 mph |
| | | | | | | | | | |
| ACCESSORIES: | | | | | | | | |
| Skirts | | | | | | | | | |
| Reflectors | | | | | | | | |
| | | | | | | | | | |
| Sphere - Ellipse: Tungsten | | | | | | | |
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks |
| (291 cft) |
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 6.5’ | 6’x8’ | 40’ | 1 | 1 | 30 min | 45’ | 10 mph |
| 4 KW Tungsten | Sphere | Ellipse | 4x 1 KW / G6.35 | 8’ | 8’x10’ | 45’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 8’ | 8’x10’ | 40’ | 2 | 1 | 30 min | 45’ | 15 mph |
| 5 KW Tungsten | Sphere | Ellipse | 2x 2.5 KW / G38 | 10’ | 10’x12’ | 45’ | 3 | 1 | 30 min | 45’ | 15 mph |
| 8 KW Tungsten | Sphere | Ellipse | 8x 1 KW / G6.35 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 10 KW Tungsten | Sphere | Ellipse | 2x 5 KW / G38 | 12’ | 12’x16’ | 70’ | 5 | 1 | 50 min | 100’ | 20 mph |
| 15 KW Tungsten | Sphere | Ellipse | 2x 5 KW | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| + 2x 2.5 KW / G38 |
| 20 KW Tungsten | Sphere | Ellipse | 4x 5 KW / G38 | 16’5 | 80’ | 10 | 2 | 70 min | 120’ | 25 mph |
| | | | | | | | | | |
| | | | | | | | | | |
| Sphere - Ellipse: Hybrid | | | | | | | | |
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks |
| (291 cft) |
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 8’ | 8’x10’ | 35’ | 2 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 |
| 3.7 KW | Sphere | Ellipse | 1x 2.5 KW | 10’ | 10’x12’ | 45’ | 3 | 1 | 40 min | 45’ | 15 mph |
| Hybrid | + 1x 1.2 KW G38 |
| 7.4 KW | Sphere | Ellipse | 2x 2.5 KW | 12’ | 12’x14’ | 60’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 2x 1.2 KW G38 |
| 8.4 KW | Ellipse | 6x 1 KW | 8.8’x12’ | 40’ | 4 | 1 | 40 min | 55’ | 15 mph |
| Hybrid | + 2 x 1.2 KW G6.35 + G38 |
| 9.6 KW | Ellipse | 6x 1 KW | 12’x14’ | 50’ | 5 | 1 | 55 min | 100’ | 20 mph |
| Hybrid | + 3x 1.2 KW G6.35 + G38 |
| 18 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW G6.35 + G38 |
| 18 KW | Sphere | 2x 5 KW | 16.5’ | 80’ | 10 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 2x 4 KW G38 |
| 19 KW | Ellipse | 6x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 1x 5 KW |
| | + 2x 4 KW / |
| | G6.35 + G38 |
| 20 KW | Ellipse | 8x 1 KW | 14’ x 20.6’ | 80’ | 12 | 2 | 75 min | 100’ | 20 mph |
| Hybrid | + 3x 4 KW |
| | G6.35 + G38 |
| | | | | | | | | | |
| | | | | | | | | | |
| Sphere - Ellipse: Sodium / Mercury | | | | | | | |
| Unit | Shape | Lamps / Socket | Dims | Max Height | Helium | Techs | Set Up Time | Cable Length | Max Wind Speed |
| tanks |
| (291 cft) |
| 4 KW | Sphere | 4x 1 KW / | 14’ | 60’ | 5 | 1 | 65 min | 100’ | 15 mph |
| Sodium / Mercury | Mogul E39 |
THE CASE
THE COMPANY
HAFE International Limited is a specialized manufacturer and global exporter for special Event Lighting, Inflatables and Electricals, Equipment & Tools involved.
Wuxi Fenigal Science and Technology Co. Ltd. is the holding company of HAFE InternationalLimited.
Established in early 2008, HAFE started from a B2B business entity, which integrates manufacturing resources in a list of industrial sectors included but not limited to like lighting,electrical, machinery, water treatment etc. Among them, lighting and electrical business are typical of what we are mostly focused in, through not only OEM manufacturing, but also partially and gradually production shift in our own facilities and supervision.
From 2010, a new business - inflatables -attract our attention, especially those types used in various Event industries. The result of pur inflatable business together some innovative ideas sparked from latest lighting technologies and arising demands in revelant market is the generation of our totally new, unique and special inflatable event lighting and industrial lighting business.

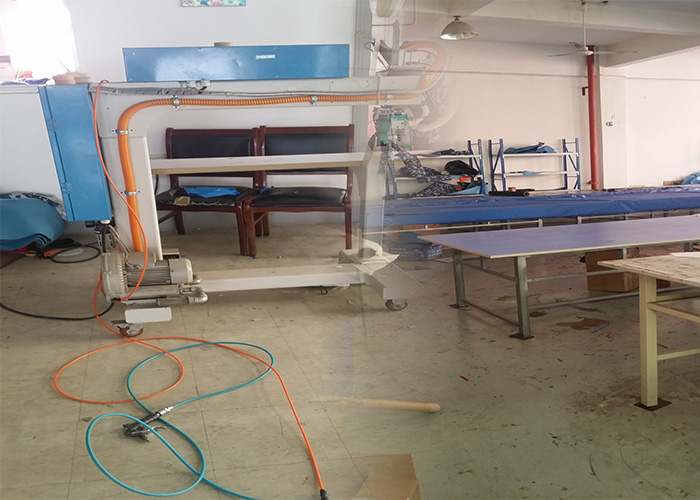

Pictures of our factory
